WM1x21 (f), WM2x20 (r). with chrome rims.
Petrol tank, black with gold lining. Twin Coventry movement fillers with front fitted petrol balance pipe. Single bolt damper arm fixing and 8 bolt tank fixing. Oil tank mounted on rear frame tube with 2 Coventry Movement fillers, one either side of machine.

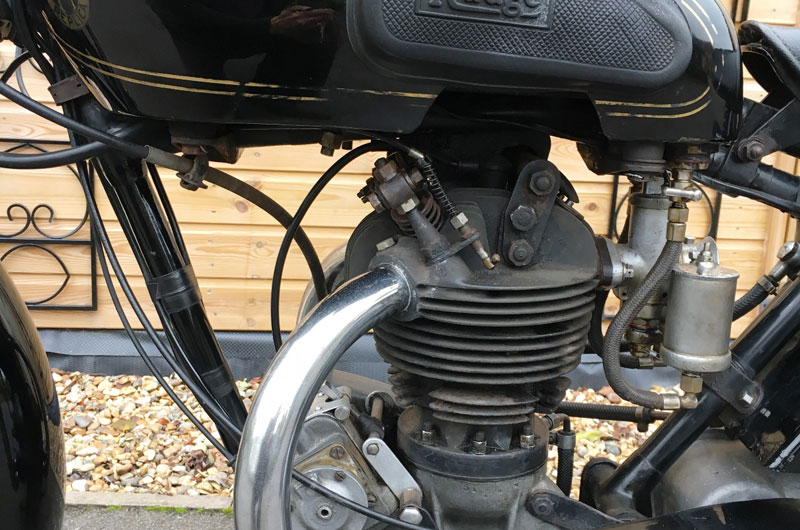

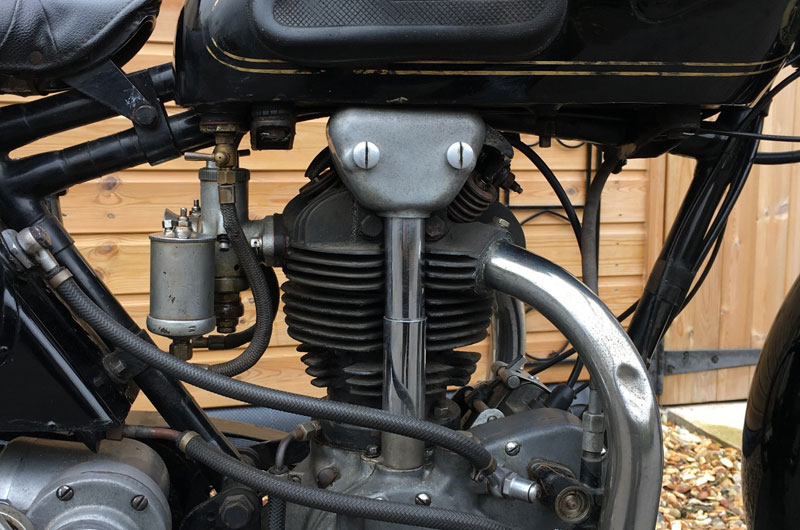

4 valve 349cc/499cc with cast iron TT type open valve cylinder head, parallel inlet valves and radial exhaust.14mm central plug and oval inlet port. BTH racing magneto. Webbed drive side crankcase (8) and a single web under the timing cover. Oil feed to rear of cylinder.
8” front and rear, coupled with steel shoes. RHS foot operated.
4 speed close ratio TT replica type gearbox with foot change on LHS using rocking pedal.

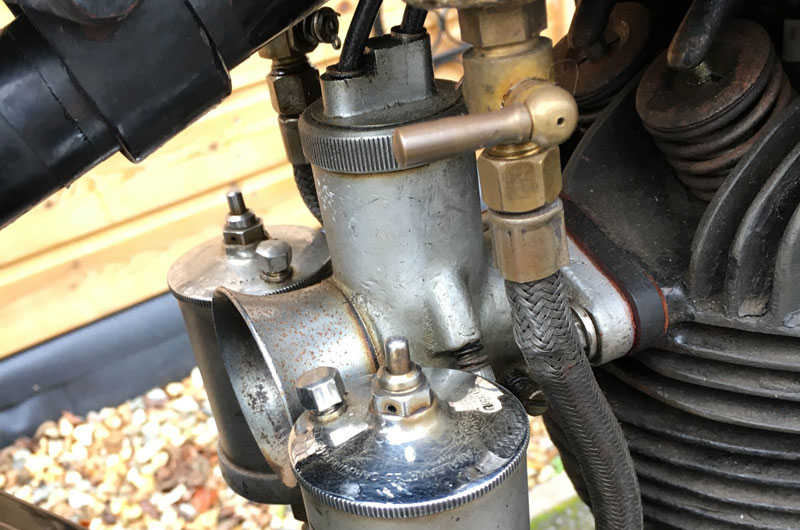

Amal racing type 10TT32. 1 3/32” (350cc) or 1 5/32” (500cc).
Twin 1 1/2” low-level downpipes into Rudge ‘can’ type silencers and 6” fishtails.

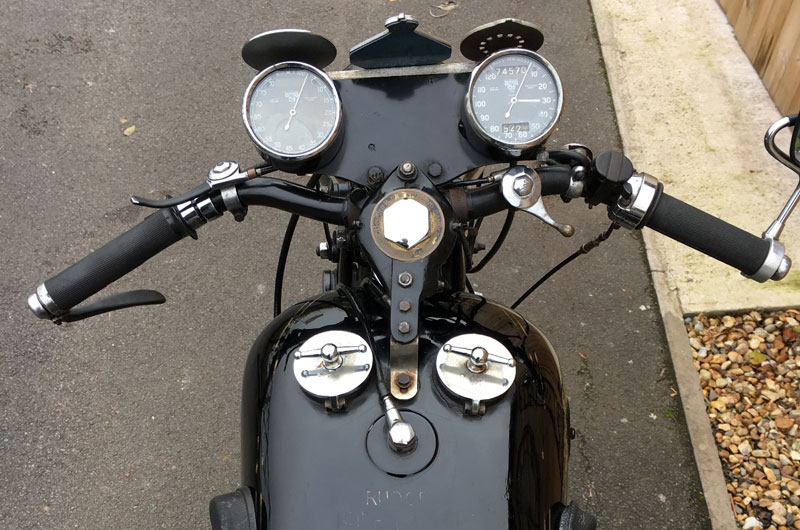

1” TT pattern handlebars with Bowden single cable handlebar controlled damper and folded type clutch and inverted levers. Single high level leather fronted toolbox fitted to offside of machine. Pressed steel central stand. Open ended ‘D’ section forks with rubber buffers to rear of fork bridge.
